Polyamide 6 economical alternative to polyamide 66 in Porsche engine oil pan

The trend of manufacturing engine oil pans from plastic instead of metals such as aluminum is continuing to gain ground. For historical reasons, the plastic of choice to date has almost always been polyamide (PA) 66.

However, newer designs are favoring PA 6, an alternative that offers a similarly high-quality property profile, but is much more economical. The latest design of this type is the oil pan module for the new six-cylinder boxer engines of the Porsche 911 Carrera, which is being manufactured using Durethan from Lanxess.

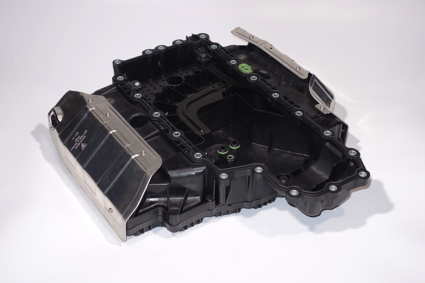

Oil pan molded from polyamide 6 weighs a total of 3.1 kg, which is 2 kg lighter than the previous aluminum version.

“The component fully satisfies the specific requirements for functional integration, lightweight construction and cost-effective production that the new generation of engines has to meet,” explains Jorge Soares, project manager for the highly complex component at Polytec Plastics Germany GmbH & Co KG. The oil pan module was developed in close collaboration between Polytec and Porsche.

In a study carried out for Porsche, Lanxess proved the feasibility of manufacturing motor oil pans from PA 6. For example, aging tests were carried out to determine the durability of the thermoplastic under exposure to elements such as new and used engine oil. Specimen storage tests spanning a total of 3,000 hours at 150 °C were performed on highly reinforced, hydrolysis-stabilized, easy-flowing and high-temperature-stabilized Durethan grades, among others.

“The test results show that the aging behavior of heat-stabilized PA 6 is only marginally different to that of heat-stabilized PA 66 in terms of tensile strength, Young's modulus, elongation at break and impact strength. Appropriately optimized PA 6 compounds are therefore ideally suited for use in components that convey engine oil,” says Christof Boden, expert for engine compartment applications from Lanxess. The specialty chemicals company is making the test results – and other material data – available to development partners as part of joint projects.

Furthermore, customers are supported through every stage in the development of an oil pan as part of the HiAnt customer services package. This brand incorporates extensive material, simulation and processing competence, which it offers to customers through all stages of component development. Services include, for example, simulating mold filling including warpage calculation, simulation of stone impact and sealing forces, or testing of components with regard to sealing gap expansion and stone impact.

The engine oil pan for the Porsche 911 Carrera consists of an upper and a lower part made from 30 percent glass fiber-reinforced Durethan BKV 30 H2.0 from Lanxess. The upper part is screw-connected to a pipeline carrier that is also made from PA 6. Using plastic instead of aluminum means that numerous functions can be shaped directly during injection molding, thereby integrating them into the component. This has helped to reduce the number of separate parts that need to be manufactured and mounted for the oil pan from 14 on the metal design to eight.

The number of key work steps needed in the final assembly of the engine has also been cut from eight to two. For example, the bulkhead panel is integrated into the lower part of the pan and no longer has to be installed separately with a seal. Furthermore, the oil return lines of the turbocharger, the oil separator and the air-oil separator are combined in the pipeline carrier.

PA 6 has helped to reduce the weight of the upper and lower sections of the oil pan to 1.3 and 1.8 kg, respectively. Overall, the oil pan is more than two kg lighter than its aluminum predecessor, due to the lower density of the plastic and the optimized wall thicknesses.

A key argument in favor of manufacturing the oil pan using injection molding was the huge potential that the process offers for integrating functions and thereby cutting costs. What’s more, as the parts are produced in a single step in the mold, there is no need for complex finishing work such as deburring die-cast aluminum parts. The lower energy costs are another benefit in favor of manufacturing injection-molded parts.
