Hands off that mold; precision laser polishers replace grinding stones and manual labor

Mold polishing is perhaps one of the most critical phases of the mold build (and in mold repairs), and for decades it's been primarily a manual operation. Every mold company has one or two employees in a corner sitting under a bright light, bent over their work piece, painstakingly polishing with grinding stones, meticulously working with finer and finer abrasives until, micron by micron, the surface is perfect. This is time-consuming work and according to Karl Szanto, operations manager at injection mold manufacturer Tech Mold Inc. can represent as much as 8-12% of the total number of man-hours in a mold build.

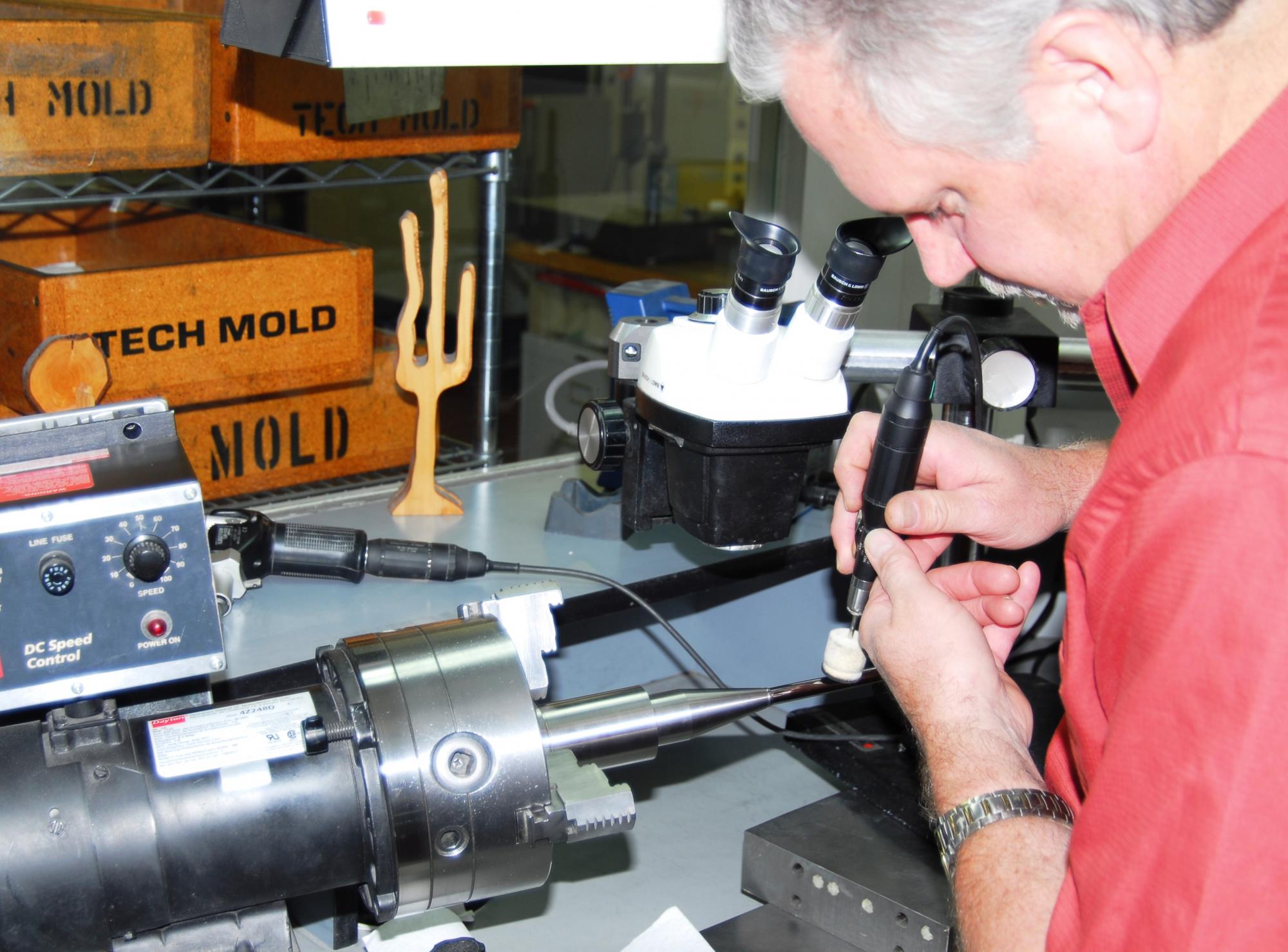

Cores are expertly polished at Tech Mold. But soon maybe lasers can do much of a polisher's work, as shown in the photo below (laser treated part on the right).


Now, there may be an easier, faster way to polish mold components. Two companies in Germany have joined forces - Maschinenfabrik Arnold and S&F Sytemtechnik - in collaboration with researchers at the Fraunhofer Institute for Laser Technology (ILT) and developed a machine tool which can polish both simple and complex surfaces using laser beams. This new technology will be presented in December at this year's EuroMold trade fair in Frankfurt (Hall 11, Booth C66).

"Conventional methods remove material from the surface to even it out," says Edgar Willenborg, section head at the ILT in Aachen, also Germany. "Our method is different: it uses laser to melt a thin surface layer roughly 20 - 100 microns deep. Surface tension - a property that applies to all liquids - ensures that the layer of liquid metal solidifies evenly."

Depending on the material, the project team's initial trials can produce surfaces with an average roughness (Ra) of between 0.1 and 0.4 microns. "Hand polishing can still get better results than that," Willenborg admits, "but the point is that in many applications - for example molds for glass-making, forming and forging tools - a medium-quality surface is all that is needed."

However, Willenborg added that he and his team "expect improvements with ongoing research" in the next few years. "But, we do not expect to dramatically reduce the achievable roughness in a short time," he said. "In the lab, we have achieved a roughness of Ra = 0.05 microns on a turned surface with an initial surface roughness before polishing of Ra = 5.00 microns. But at the moment we can achieve this only with precisely controlled conditions."

Economical option for the right applications

The new laser polishing machine developed at the ILT has the potential to save considerable time and money in these areas. "The machine polishes surfaces up to ten times faster than a hand polisher and is an excellent option for serial production and for polishing small batches," explained Willenborg.

The system consists of a 5-axis gantry plus an additional 3-axis laser scanner, a design that allows the work piece to be accessed from all sides. Strategically placed mirrors deflect the laser beam to allow feed rates (the speed at which the laser beam moves along the work piece within a specified time frame) in excess of one meter a second, even on small surfaces.

An end-to-end CAM NC data chain has also been developed which draws on a 3D CAD model of the component to be polished. The beam path data is calculated on the basis of this model. "For this step, we use conventional computer-aided manufacturing (CAM) programs such as those used in milling processes," said Willenborg. "The advantage is that companies are typically running those kinds of programs so the employees know how to use them."

The calculated beam path data is then supplied to a special post-processing software program developed at the ILT. This program configures more advanced aspects of the process, such as adapting the laser to the specific angle of incidence and component edges in each particular case.

A year ago, Willenborg and the ILT approached Tech Mold about this technology. Tech Mold gave the ILT a sample mold component on which to work. "The sample looks good," commented Bill Kushmaul, as he showed PlasticsToday the part which had a hand-polished area next to an area that was laser polished. "The technology is there, but it needs to be refined. We believe they'll achieve what they're trying to do."

The big question is whether or not you can get a perfectly flat surface. It can be made shiny but can it be made flat? "If they achieve this it will be a real breakthrough in the mold making industry," said Kushmaul. "Currently, polishing represents a significant number of man-hours at the end of the mold component manufacturing process."

Willenborg noted, "When a highly skilled hand polisher has a lot of time and a high quality steel, he can achieve a roughness below RA 0.01 microns. We do not expect to get to this level with laser polishing, but as stated before, we address the applications where a medium surface finish is enough."

EDM finishes are extremely good, and many times that is the finish required. If something better is required, Tech Mold will take a component with an EDM finish to its polishing department where it will be put through the process of hand polishing, Kushmaul explained. "EDM finishes are getting better and we can achieve finer finishes with EDMing," he added, "which meets the needs of many plastic components. With good mold polishers getting harder and harder to find, and the need for good, consistent detail in the finished component, it will be interesting to see where the laser polishing system can take us."

Willenborg added, "We do not want to be better than the manual polisher, but we want to be faster and cheaper for the medium quality range, which will ultimately reduce the cost to both the mold maker and the end user."

This new technology also offers benefits in terms of machine development. "The fact that we are working with a completely new operating principle makes it much easier to construct the machines we need," Willenborg said. "Unlike conventional polishing techniques, laser polishing does not primarily rely on the rigidity of the machine to achieve high component quality, but rather on the physics of surface tension."

The new laser polisher will be ready for commercial market launch in the near future.
