Lanxess Gives Heat the Cold Shoulder in EVs

Cooling element for the charge controller of an electric sports car made from PA 6 has thermal conductivity and flame-retardant properties.

June 20, 2022

2 Min Read

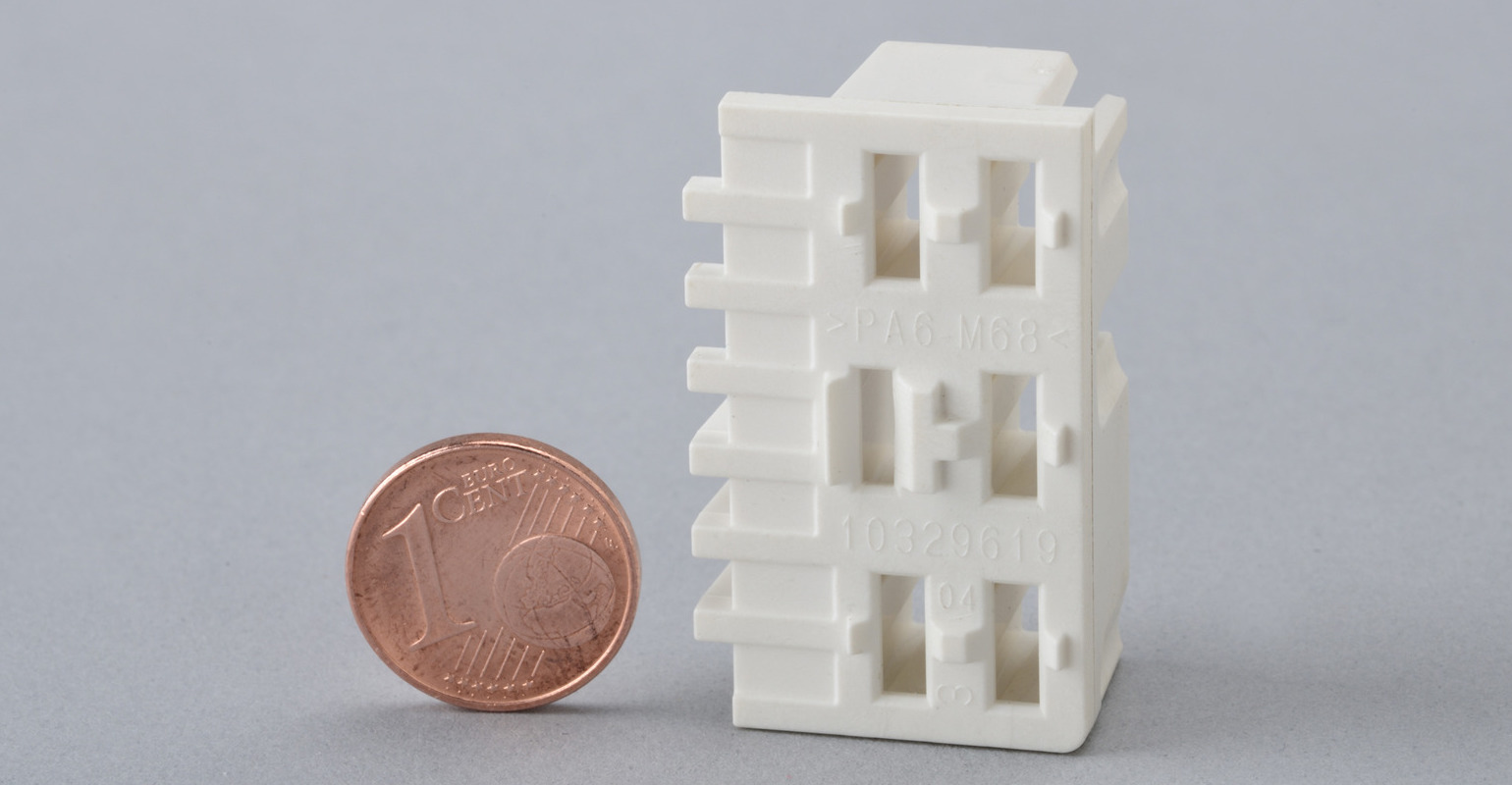

The cooling element of the charge controller for the electric sports car is made of Durethan BTC965FM30. This thermally conductive polyamide 6 prevents overheating during the charging process and meets the strict requirements for flame-retardant properties, tracking resistance and design.Image courtesy of Lanxess

Thermally conductive plastics have great potential for use in thermal management of charging systems for electric vehicles. One example is the charge controller in the fully electric vehicle of a sports car manufacturer based in southern Germany.

The controller contains a cooling element that dissipates the heat generated in the plug contacts of the controller when charging the batteries. The cooling element is made of the thermally conductive and electrically insulating Durethan BTC965FM30 polyamide (PA) 6 from Lanxess.

“As well as preventing the charge controller from overheating, our structural material meets the strict requirements for flame-retardant properties, tracking resistance and design,” explains Dr. Bernhard Helbich, Technical Key Account Manager at Lanxess. The manufacturer of the entire charging system for the sports car is Leopold Kostal, a global system supplier of automotive, industrial, and solar electrics as well as electrical contact systems.

Charge controllers convert the three-phase, or alternating, current fed in from the charging station to direct current and control the charging process. During the process, they limit the charging voltage and current to prevent overcharging of the battery, for example. A current with an amperage of up to 48 amps flows through the plug contacts in the charge controller of the sports car, causing significant generation of heat during charging.

“Our polyamide is filled with special mineral heat-conducting particles that conduct this heat efficiently away from the source,” says Helbich. These particles give the compound a high thermal conductivity of 2.5 W/m∙K in the direction of melt flow (in plane) and 1.3 W/m∙K perpendicular to it (through plane).

In addition, the halogen-free flame-retardant PA 6 material ensures that the cooling element is highly fire-resistant. As required, it passes the UL 94 flammability test with the most stringent classification, V-0 (0.75 millimeters). Its high tracking resistance also contributes to greater safety. This is demonstrated by its CTI A value of 600 V (Comparative Tracking Index, IEC 60112). Helbich adds: “The tracking resistance gives designers greater freedom in engineering the component, as they can arrange electrical assemblies even more compactly without having to worry about short circuits and device defects caused by creepage currents.” Consequently, along with guides and ribs, the cooling element is equipped with six closely spaced cavities to house the plug contacts.

Despite the high content of thermally conductive filler (68% by weight), the PA 6 has good flowability. “In terms of its processing characteristics, the material is similar to highly reinforced types of PA 6 that have a glass fiber content of up to 60% by weight,” explains Helbich. The heat-conductive thermoplastic also has potential for use in electric vehicle battery components such as plugs, heat sinks, heat exchangers, and mounting plates for power electronics.”
